Description

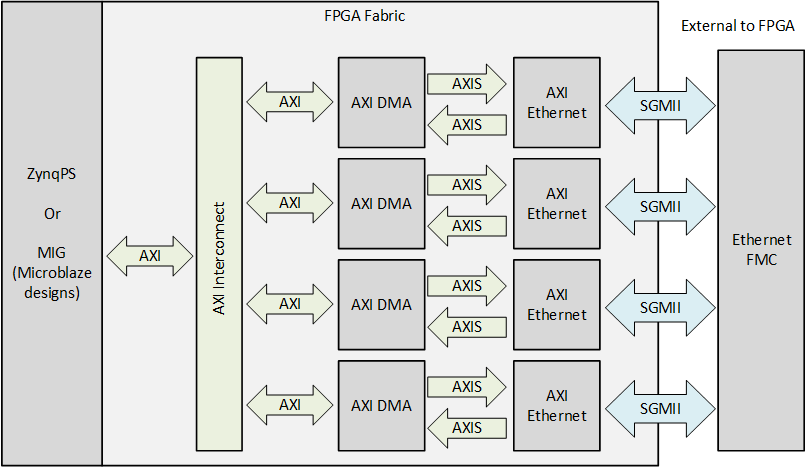

In this reference design, each port of the Ethernet FMC Max is connected to an AXI 1G/2.5G Ethernet Subsystem IP which is connected to the system memory via an AXI DMA IP.

Hardware Platforms

The hardware designs provided in this reference are based on Vivado and support a range of FPGA, MPSoC and ACAP evaluation boards. The repository contains all necessary scripts and code to build these designs for the supported platforms listed below:

Zynq UltraScale+ platforms

Target board	FMC Slot Used	Supported Num. Ports	Standalone Echo Server	PetaLinux
UltraZed-EV Carrier	HPC	4x	✅	✅
ZCU102	HPC0	4x	✅	✅
ZCU102	HPC1	4x	✅	✅
ZCU104	LPC	1x	✅	✅
ZCU106	HPC0	4x	✅	✅
ZCU111	FMCP	4x	✅	✅
ZCU208	FMCP	4x	✅	✅
ZCU216	FMCP	4x	✅	✅

Versal platforms

Target board	FMC Slot Used	Supported Num. Ports	Standalone Echo Server	PetaLinux
VCK190	FMCP1	4x	✅	✅
VCK190	FMCP2	4x	✅	✅
VEK280	FMCP	4x	✅	✅
VHK158	FMCP	4x	✅	✅
VMK180	FMCP1	4x	✅	✅
VMK180	FMCP2	4x	✅	✅
VPK120	FMCP	4x	✅	✅
VPK180	FMCP	4x	✅	✅

Software

These reference designs can be driven by either a standalone application or within a PetaLinux environment. The repository includes all necessary scripts and code to build both environments. The table below outlines the corresponding applications available in each environment:

Environment	Available Applications
Standalone	lwIP Echo Server
PetaLinux	Built-in Linux commands Additional tools: ethtool, phytool, iperf3
